Description

SPECIFICATIONS

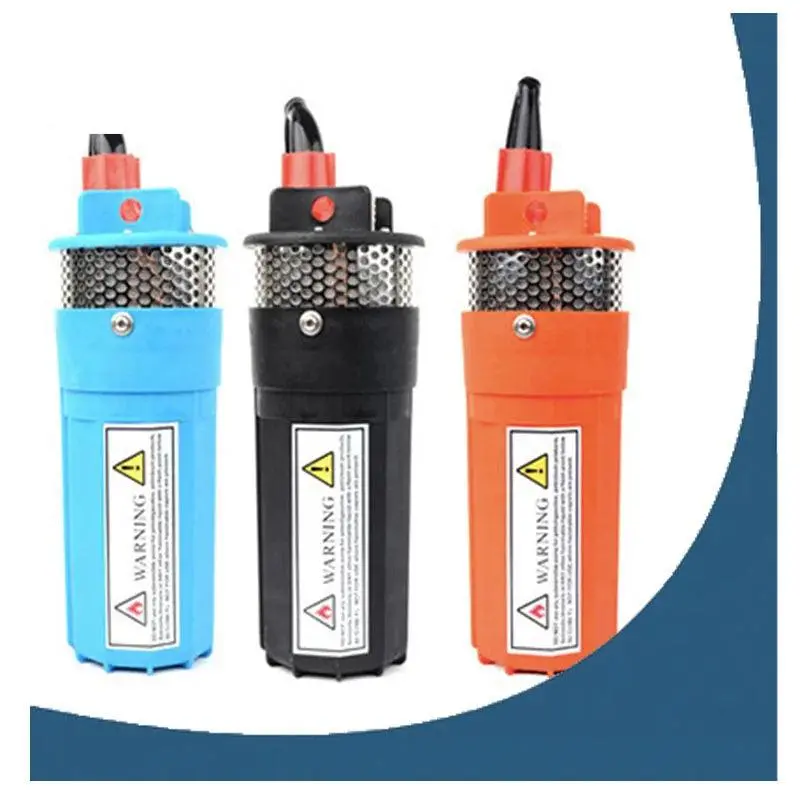

DC24V 360LPH 70M Lift Small Submersible Solar Water Pump for Solar System

Brand Name: BLUSUNSOLAR

Structure: Submersible Pump

Power: Electric

Fuel: Other

Origin: CHINA

Pressure: High Pressure

Usage: Water

Model Number: Water Pump

Application: Submersible

Theory: Vortex Pump

Standard or Nonstandard: Standard

Type: Solar Water Pump

Color: Orange / Blue/Black

A map Max: 8 A

Volt: 24V DC

Flow Rate: 360/96

Lift Max: 70 meters

Submersion Max: 30 meters

Packing size: 355*130*110

Weight: 3 kg

DC24V 360LPH 70M Lift Small Submersible Solar Water Pump For Solar System

This pump delivers a steady 96GPH(360LPH) at its maximum depth of 230 feet(70M) when supplied with 24VDC.

Its unique water-tight power connector stops water wicking and prevents potential condensation problems.Great

for livestock watering.Irrigation pondaeration.remote homes and cabins,

Features:1. For 4″ wells or larger2. Quick disconnect with “Watertight-Gland” Design Pat Pend3. Corrosion-proof housing with stainless-steel fastener4. Run dry without damage5. State of the art solid diaphragm6. Stainless Steel Fastener7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump8. Motor: Permanent Magnet Thermally Protected9. Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)10. Outlet Port: 1/2″ (12.7mm) Barbed Fitting11. Inlet: 50 Mesh Stainless Steel Screen12. Material: High Strength Engineered Plastic13. the solar panel must be more than 150W for this pump

For more information please leave message to us, we will reply you soon, thank you!
