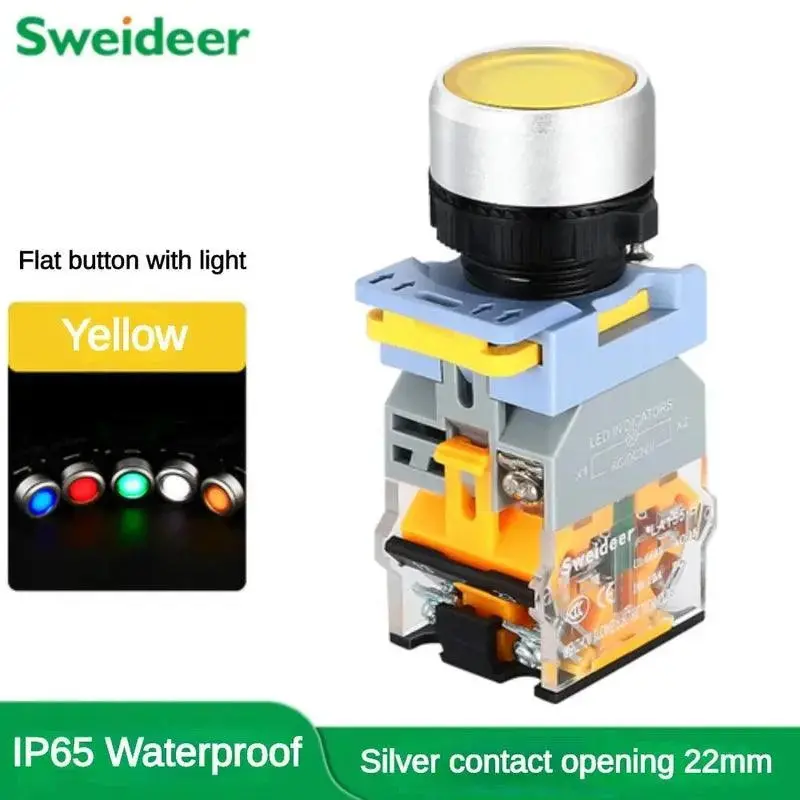

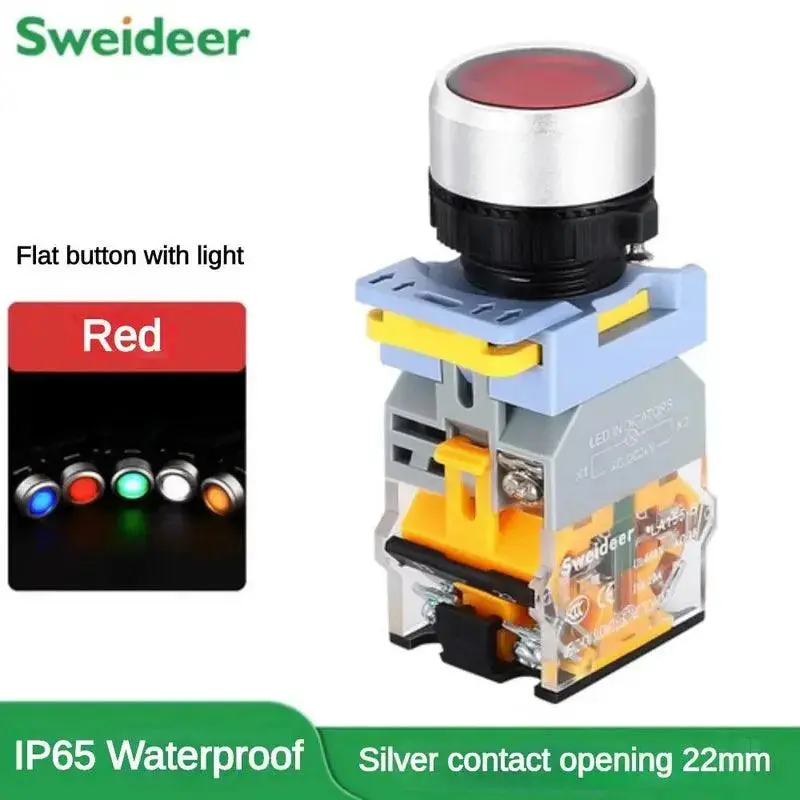

22mm Self-Locking Illuminated Push Button – Waterproof, Latching Function, 6V–380V, 2NO+2NC, Integrated LED Light

Description

22mm Waterproof Push Button Switch with LED Latching Self Locking Power Button Switch with Light 6V 24V 380V 10A 2NO 2NC

Brand Name: sweideer

Origin: Mainland China

Current: 10A

Features: Waterproof

Material: ALLOY

Item Type: SWITCHES

Warranty: 1 Year

Switch Type: Push Button Switch

Certification: CE

Certification: CCC

Certification: CCC

Certification: ce

Model Number: Push Button Switch with Light

Is Smart Device: no

Opening diameter: 22MM

Contact material: Silver contact

Button contact: 1NO1NC,2NO,2NC,2NO2NC

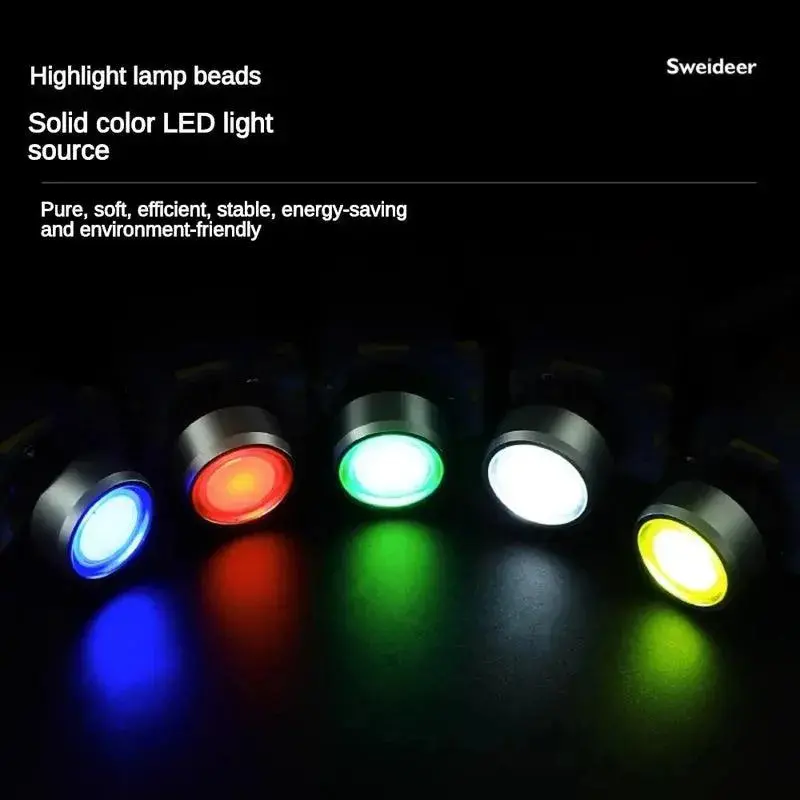

Illuminated Color: red/green/blue/white/yellow

Voltage Available: 6V,12V,24V,36V,48V,110V,220V,380V

Due to the limitation of the specification page.
If you need to choose the other voltages,please contact us, thank you!
Product Specification
Product name: Push Button Switch with Light
Contact material: Silver contact
Rated current: 10A
Opening diameter: 22MM
Button contact: 1NO1NC,2NO,2NC,2NO2NC

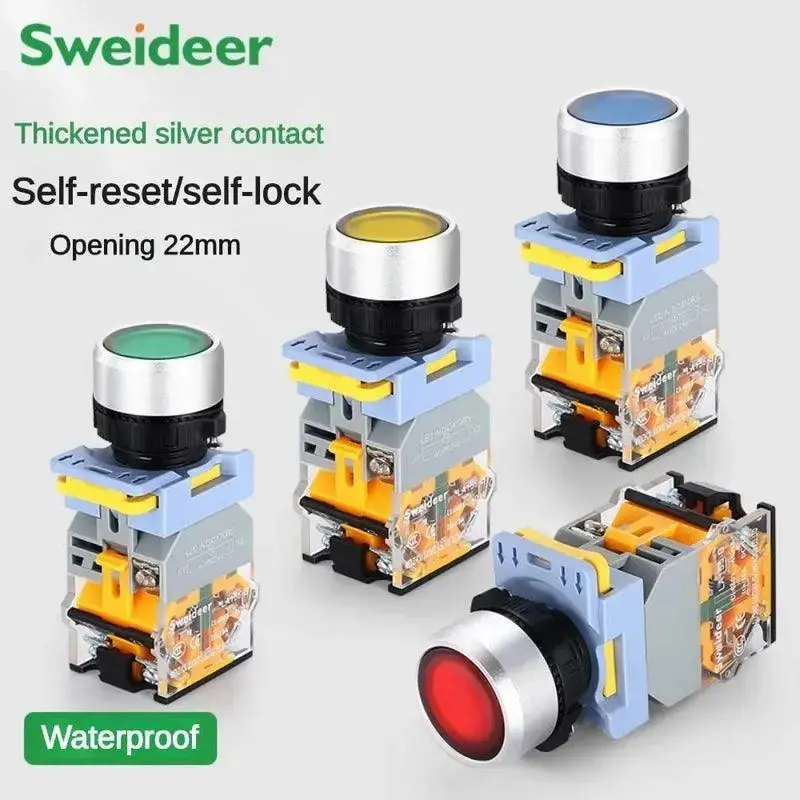

Operation mode: Momentary self-reset / fixed self-locking
Button color: Red Yellow Blue Green White
Product model: LA155-B1
Voltage Available: 6V,12V,24V,36V,48V,110V,220V,380V

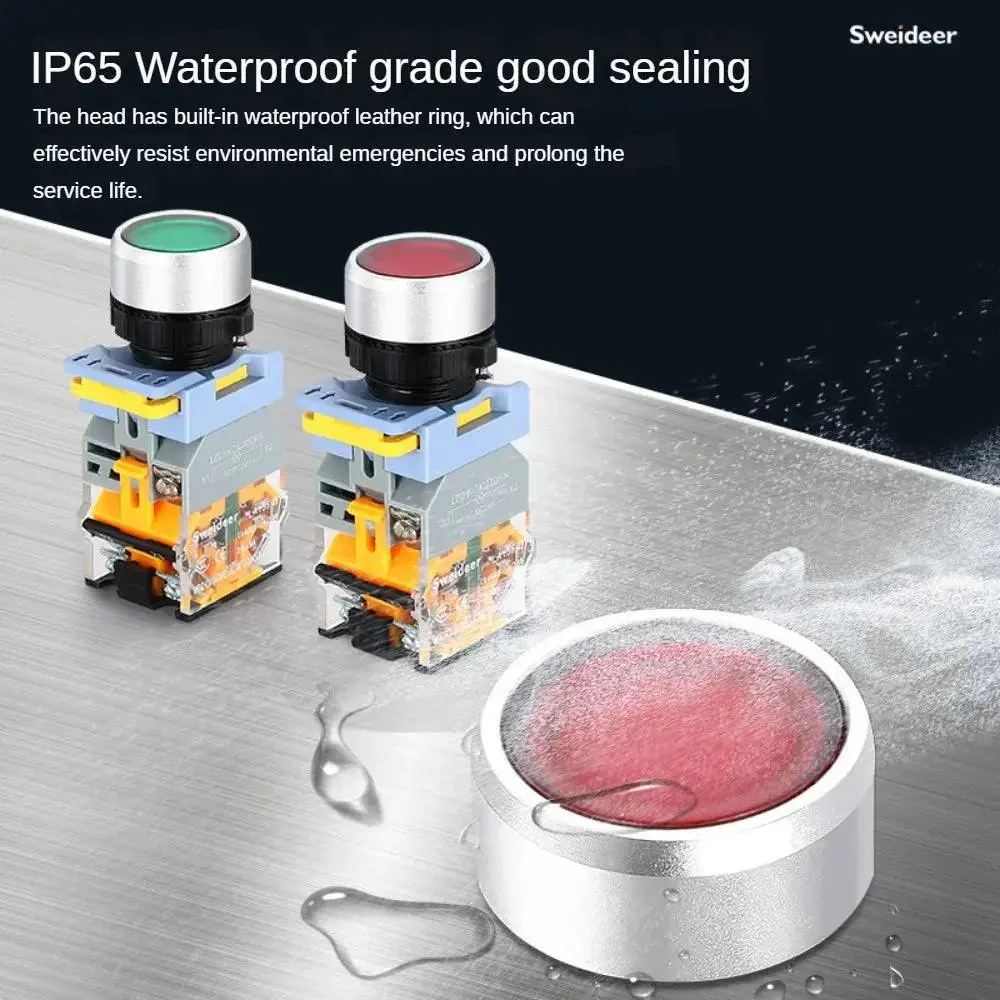

Waterproof grade: IP65
Package Content
1pc Push Button Switch with Light
Contact modular combination
NO(normally open) and NC(normally closed ) contact can replace and add at any time .
It can hold 1-6 pcs Contact modules at most.
NO(Normally open contact ): Normally in off state, press to power on.
NC(Normally closed contact): Normally in on state, press power off.
Self reset: Once pressed, the button will reset and spring back as soon as the hand is released.
Self locking: When pressed, the button locks;when pressed again, the button bounces back.

Introducing our 22mm Waterproof Power Button 6V 24V 380V, designed with intricate features and supreme functionality. Not only is it waterproof, but it’s also equipped with a LED momentary reset system, providing a high level of user convenience.

Our Power Button 6V 24V 380V is renowned for its self-locking mechanism. This advanced feature brings a high degree of security to your system, effectively preventing accidental activation or deactivation. An added benefit is its 10A 2NO 2NC specification, guaranteeing a stable and reliable performance.

For those seeking a versatile and reliable switch solution, our Power Button 6V 24V 380V is the optimal choice. And, thanks to its 22mm size, it offers a compact yet effective operation. So, if you need a power button that guarantees both durability and performance, look no further.
