12V/24V Pen-Style Electric Linear Actuator – Low-Profile Actuation

Price range: $29.23 through $65.25

Quantity
SKU: N/A Category: Brand:

Description

Specification

This pen-style electric linear actuator is a compact, durable telescopic motor designed for automatic push-pull, lifting, and reciprocating applications. Made of aluminum alloy and 304 stainless steel, it features a smooth, low-noise operation (≤50dB), built-in overcurrent/overload protection, and automatic stop at both ends to prevent damage. It supports multiple voltage (6V/12V/24V DC) and speed options, with a wide stroke range (10-1500mm) and thrust options (5N-1100N), making it ideal for automation projects, home appliances, industrial machinery, and DIY builds.
The heavy-duty version features enhanced gear and motor design, delivering up to 1100N of max thrust while maintaining stable performance. It includes an optional self-locking function for load-holding applications, making it perfect for lifting and support mechanisms requiring higher force.
DATA SHEET

Name

Parameter

Product Type

Linear Actuator / Pen Type Linear Actuator

Model Number

B(21)TL / B(32)TL / BS(9)TL

Material

Aluminum Alloy + 304 Stainless Steel / Stainless Steel

Rated Voltage

6V / 12V / 24V DC

Speed Range

2.5-22mm/s / 4-48mm/s

Max Thrust

50N / 100N / 1100N

Stroke Length

10-1500mm / 50-350mm

Protection Features

Overload/Overcurrent Protection, Auto Stop at Both Ends

IP Rating

IP54 (for B(21)TL/B(32)TL)

Noise Level

≤50dB

Operating Temperature

-29°C ~ +85°C

Control Type

DC Motor (External Control Required)

Application

Automation Equipment, DIY Projects, Lifting Mechanisms, Home Appliances

Features

Low Noise, High Thrust, Durable, Easy Installation, Adjustable Stroke

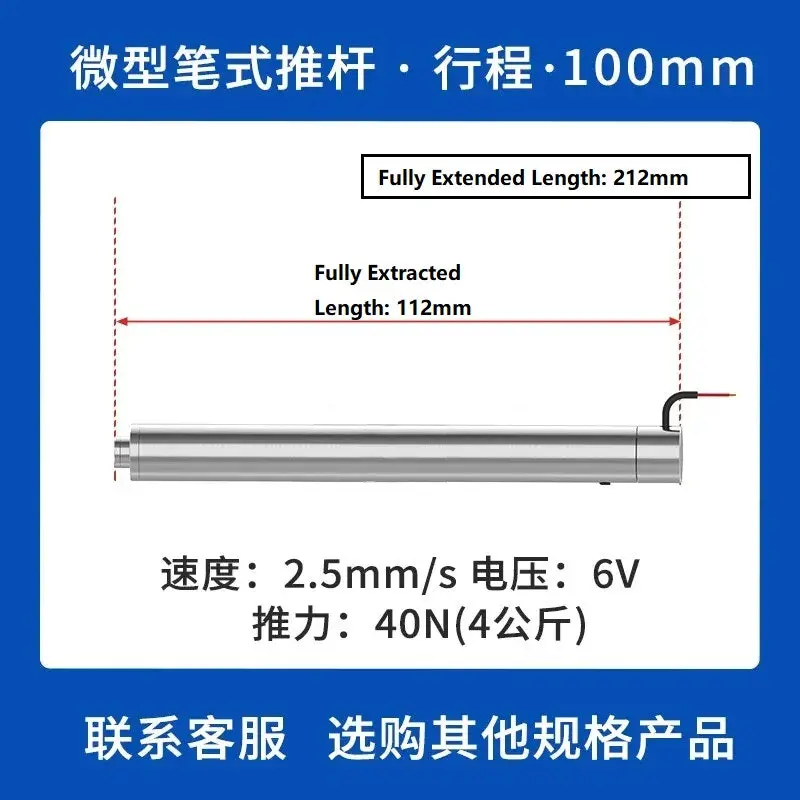

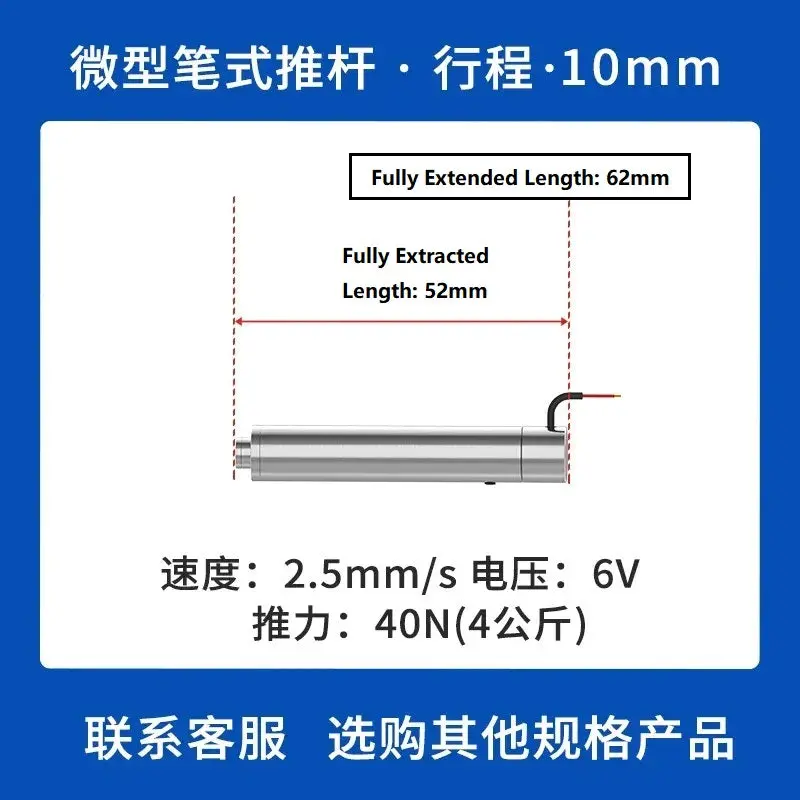

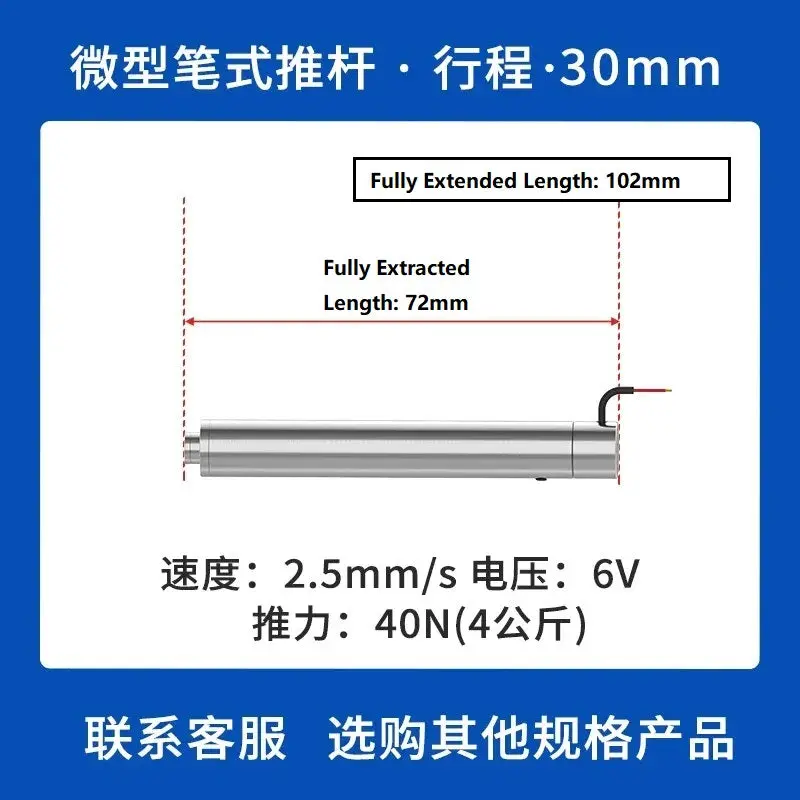

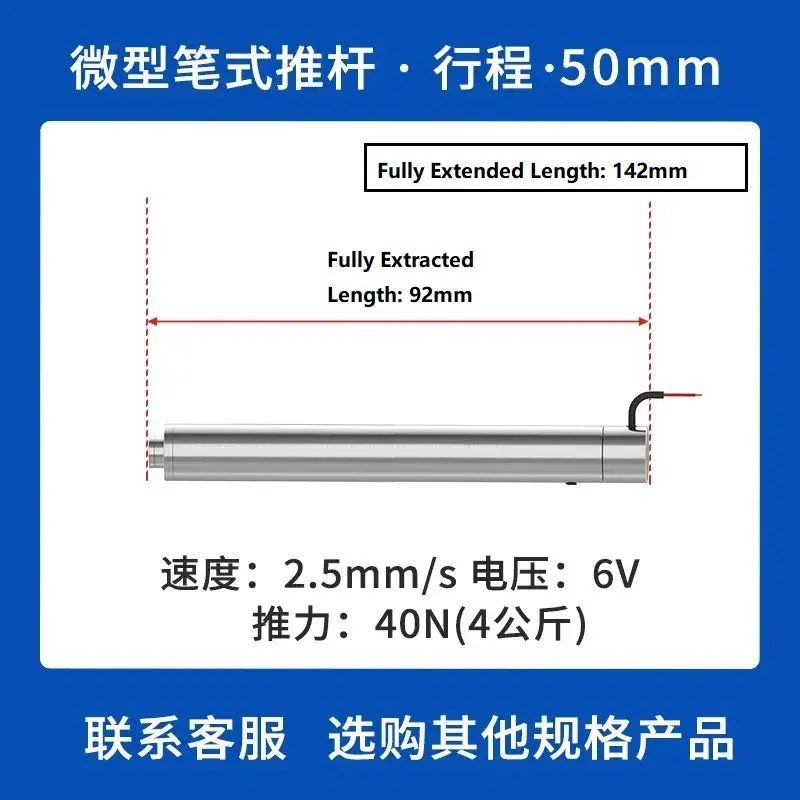

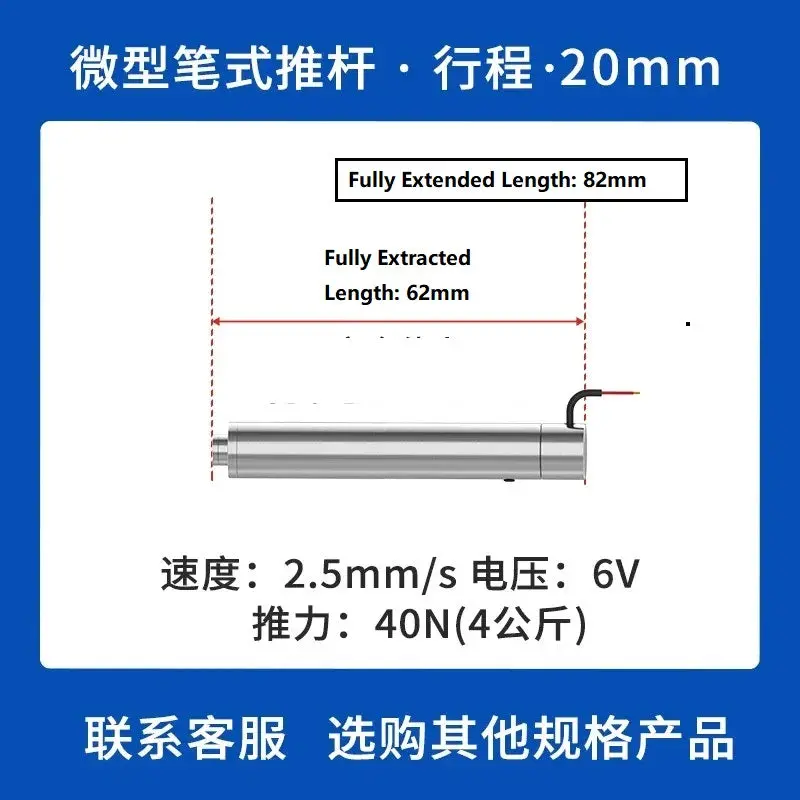

BS (9) TL 6V Micro Pen Type Electric Linear Actuator, 2.5/5mm/s Speed, 5-40N Thrust, 50-350mm Stroke, Small Stainless Steel Telescopic Motor for DIY Projects

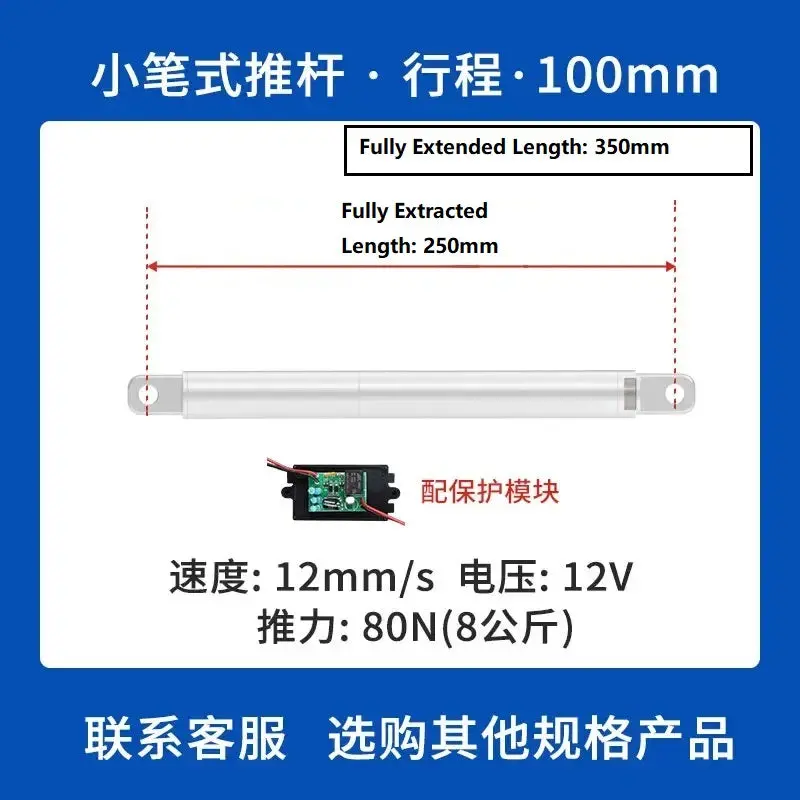

B (21) TL 12V/24V Pen Type Electric Linear Actuator, 6/12/22mm/s Speed, 40-120N Thrust, 50-350mm Stroke, Mini Telescopic Lift Motor with Auto Stop

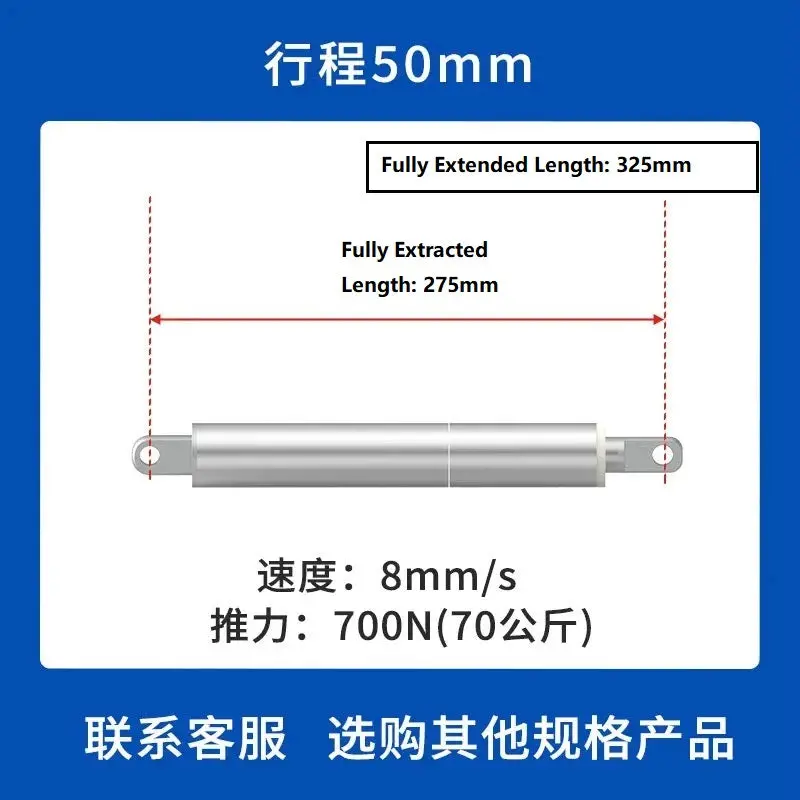

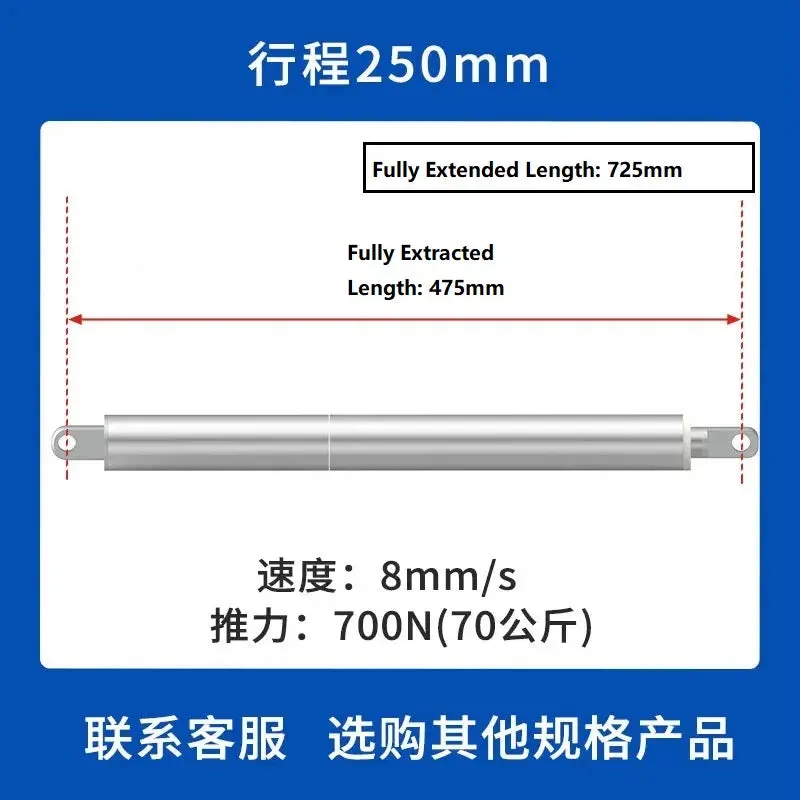

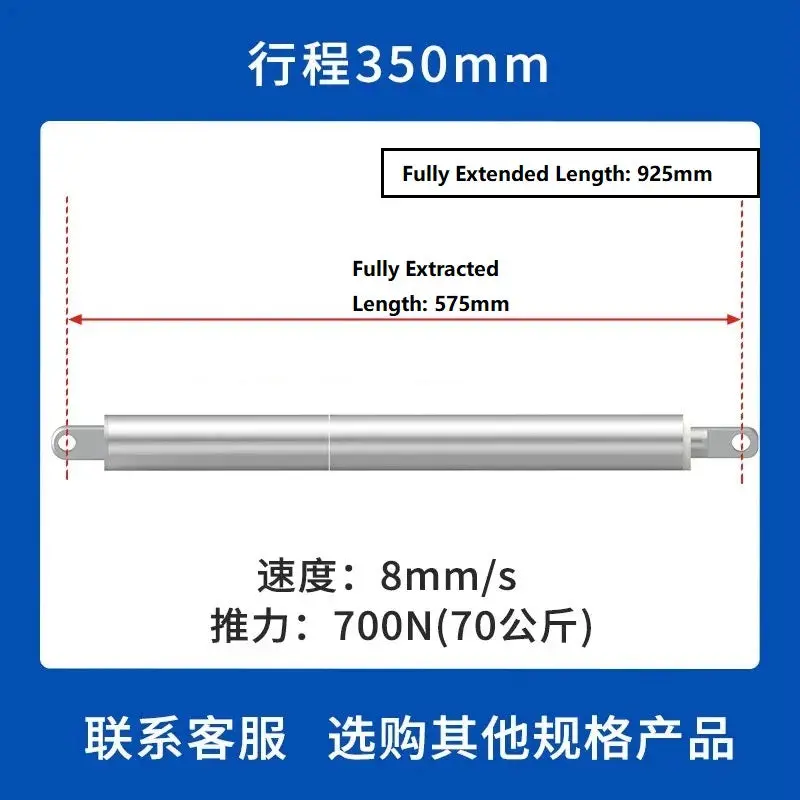

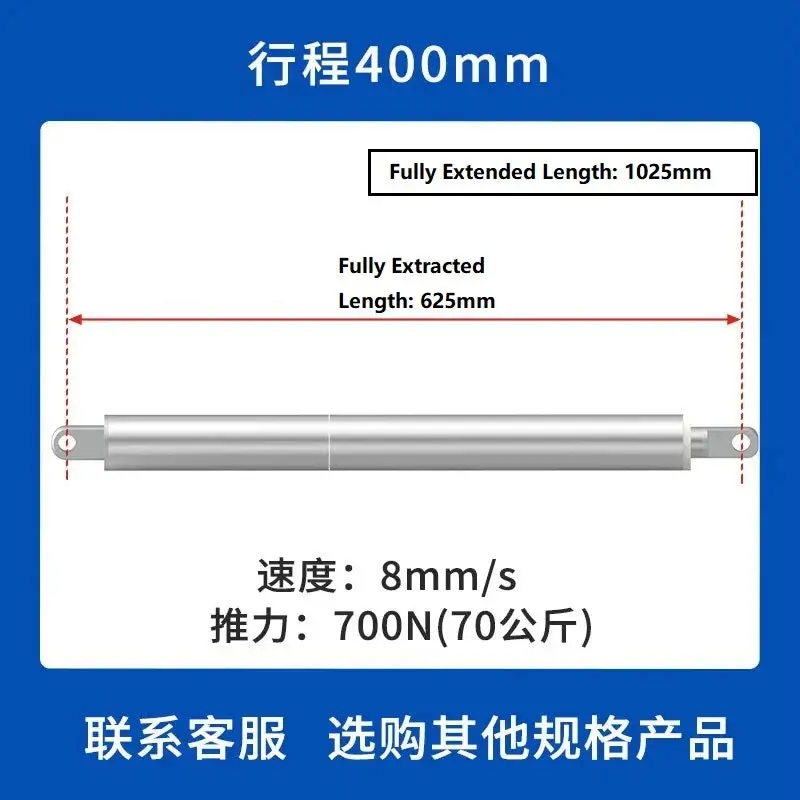

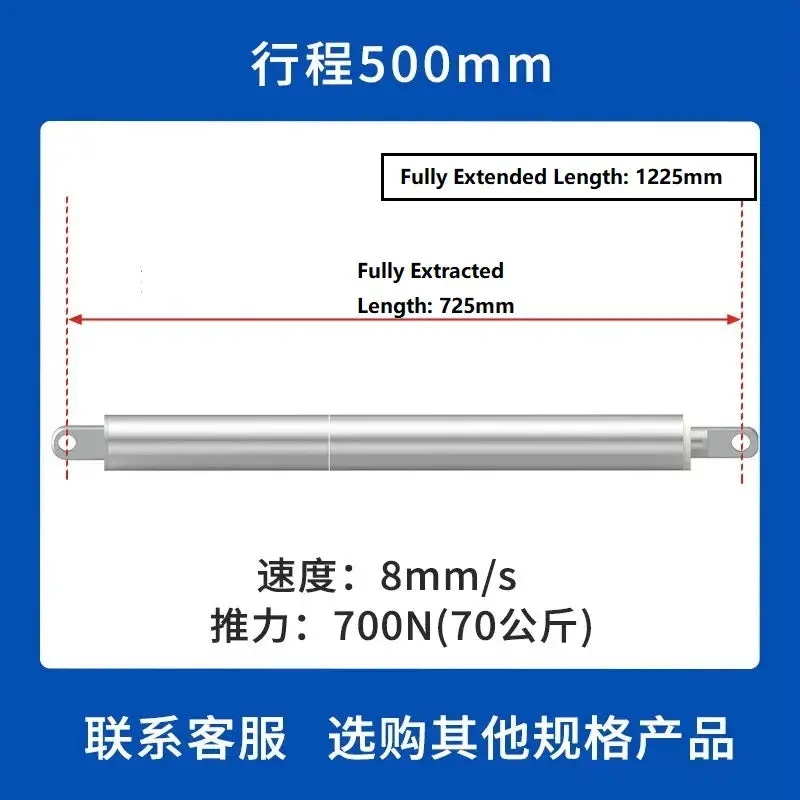

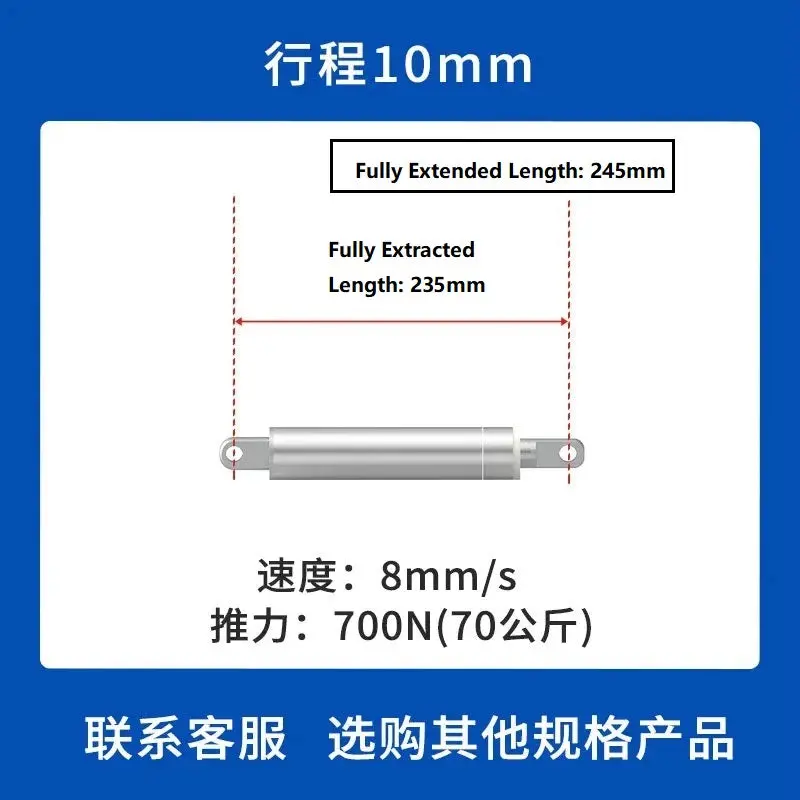

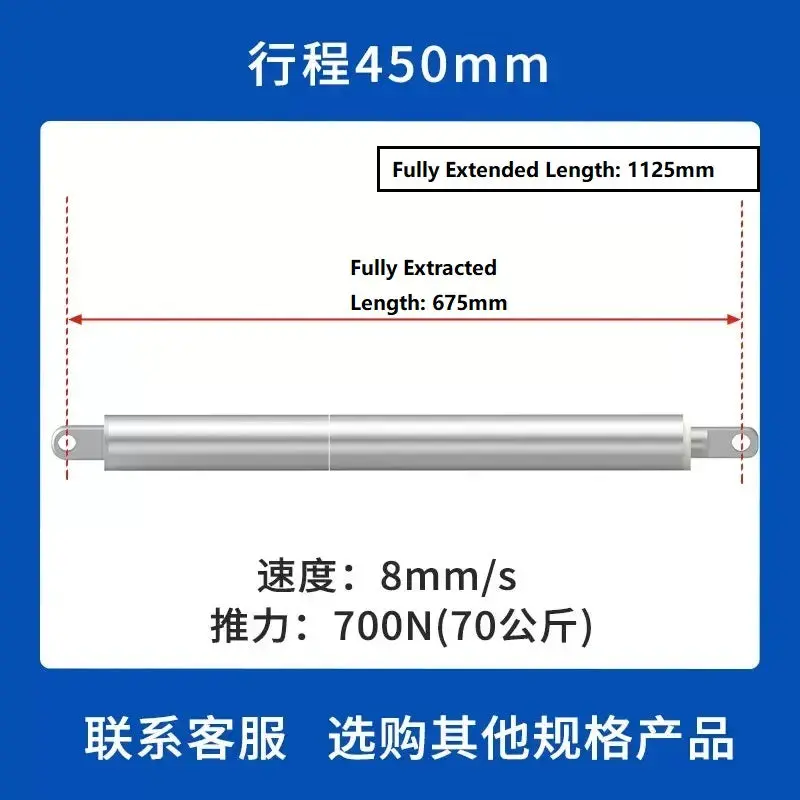

B (32) TL Heavy Duty Pen Type Linear Actuator 12V/24V DC, 4-48mm/s Speed, 70-1100N Max Thrust, 10-1500mm Stroke, Telescopic Lift Motor with Overload Protection

Connector Default send by NO.1,  if need other connector please send note to

email: info@electric-b2c.com

Explore more from our collection.

Additional information

Model NO.

12/24V B(21)TL Linear Actuator Stroke 10MM/ Speed 12mm/s 80N(8KG), 12/24V B(21)TL Linear Actuator Stroke 50MM/ Speed 12mm/s 80N(8KG), 12/24V B(21)TL Linear Actuator Stroke 100MM/ Speed 12mm/s 80N(8KG), 12/24V B(21)TL Linear Actuator Stroke 150MM/ Speed 12mm/s 80N(8KG), 12/24V B(21)TL Linear Actuator Stroke 200MM/ Speed 12mm/s 80N(8KG), 12/24V B(21)TL Linear Actuator Stroke 250MM/ Speed 12mm/s 80N(8KG), 12/24V B(21)TL Linear Actuator Stroke 300MM/ Speed 12mm/s 80N(8KG), 12/24V B(32)TL Large Linear Actuator Stroke 10MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 50MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 100MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 150MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 200MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 250MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 300MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 350MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 400MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 450MM/ Speed 8mm/s 700N(70KG), 12/24V B(32)TL Large Linear Actuator Stroke 500MM/ Speed 8mm/s 700N(70KG), Custom Made Linear Actuator Stroke 10-1500MM, Accessory Kit · 1-to-1 Wired Control (Hand Controller + Power Cable + Transformer + 2x Mounting Brackets), Accessory Kit · 1-to-1 Wireless Control (Wireless Controller + Power Cable + Transformer + 2x Mounting Brackets), Accessory Kit · 1-to-2 Wired Control (Hand Controller + Power Cable + Transformer + 2x Mounting Brackets), Accessory Kit · 1-to-2 Wireless Control (Wireless Controller + Power Cable + Transformer + 2x Mounting Brackets), 6V B(9)TL Micro Linear Actuator Stroke 10MM/ Speed 2.5mm/s 40N(4KG), 6V B(9)TL Micro Linear Actuator Stroke 20MM/ Speed 2.5mm/s 40N(4KG), 6V B(9)TL Micro Linear Actuator Stroke 30MM/ Speed 2.5mm/s 40N(4KG), 6V B(9)TL Micro Linear Actuator Stroke 50MM/ Speed 2.5mm/s 40N(4KG), 6V B(9)TL Micro Linear Actuator Stroke 100MM/ Speed 2.5mm/s 40N(4KG)
