Description
SPECIFICATIONS

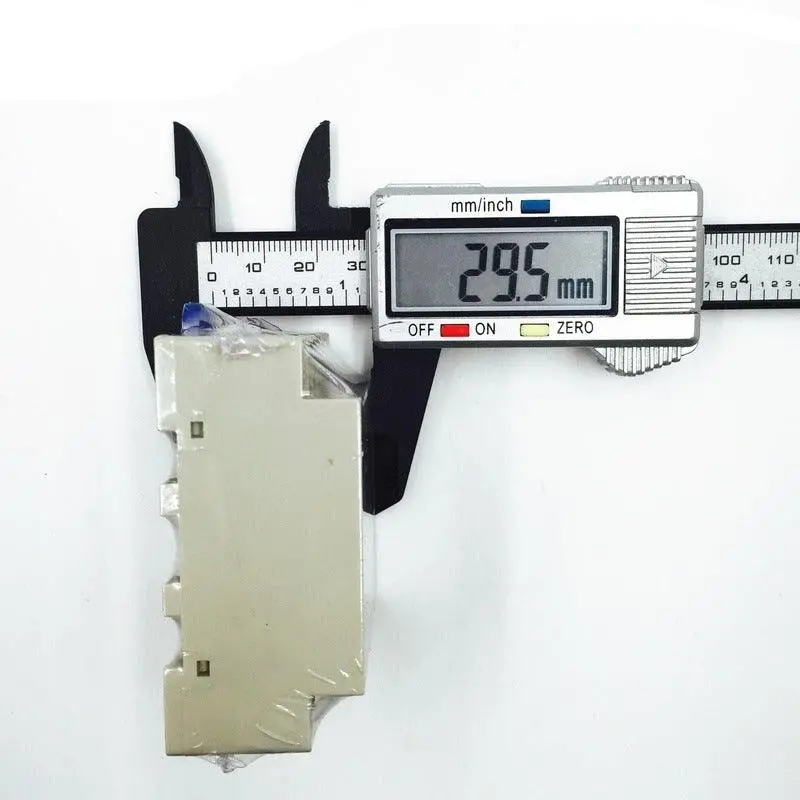

10DD 5 Channel Din rail SSR quintuplicate five input 3~36VDC output 10~36VDC single phase DC solid state relay
Usage: General Purpose
Unit Type: piece
Type: DC Solid state
Theory: Solid State Relay
Size: Subminiature
Protect Feature: Sealed
Package Weight: 0.101kg (0.22lb.)
Package Size: 5cm x 5cm x 2cm (1.97in x 1.97in x 0.79in)
Model Number: ST5-10DD
Load current: 10A
Load Voltage: 10~36VDC
Input Voltage: 3~36VDC
Contact Load: Low Power
|
Type |
Standard type |
Isolation type |
|
|
Model |
ST5-10DD |
ST5-5DDG |
PN5-10DA |
|
Rated load current |
10A |
5A |
10A |
|
Input Data |
|||
|
Input voltage |
3~36VDC |
3~32VDC |
|
|
Min. ON/OFF Voltage |
ON>4V. OFF<1.0V |
ON>2.4V. OFF<1.0V |
|
|
Trigger current |
7.5mA/12V |
4mA/12V |
|
|
Output Data |
|||
|
Operating Voltage |
10~36VDC |
5~36VDC |
24~380VAC |
|
Voltage Drop |
1.6V/25°c |
||
|
Leakage Current |
|
|
|
|
Response Time |
< 1ms |
ON<10ms, OFF<10ms |
|
|
Dielectric Strength |
Over 2.5KVAC/1min. |
||
|
Isolation Strength |
Over 50M/500VDC |
||
|
Operation Temperature |
_20°c ~ +80°c |
||
|
Housing Material |
Intensive ABS |
||
|
Weight |
65g |
85g |
|
|
Installation |
Din rail installation |
||
0.8mA
