100PCS Grounding Lug 304 Stainless Steel Corrosion Resistant Solar Ground Grounding Clip for Solar Mounting System

Brand Name: BLUSUNSOLAR

Origin: Mainland China

Material: Stainless Steel

DIY Supplies: Metalworking

Standard or Nonstandard: Standard

is_customized: Yes

Model Number: Grounding Clip

Structure: Single-side Bracket

Usage: solar panel mounting

Material: 304 stainless steel

screws Material: stainless steel

use for: solar panel mounting

Size: Standard

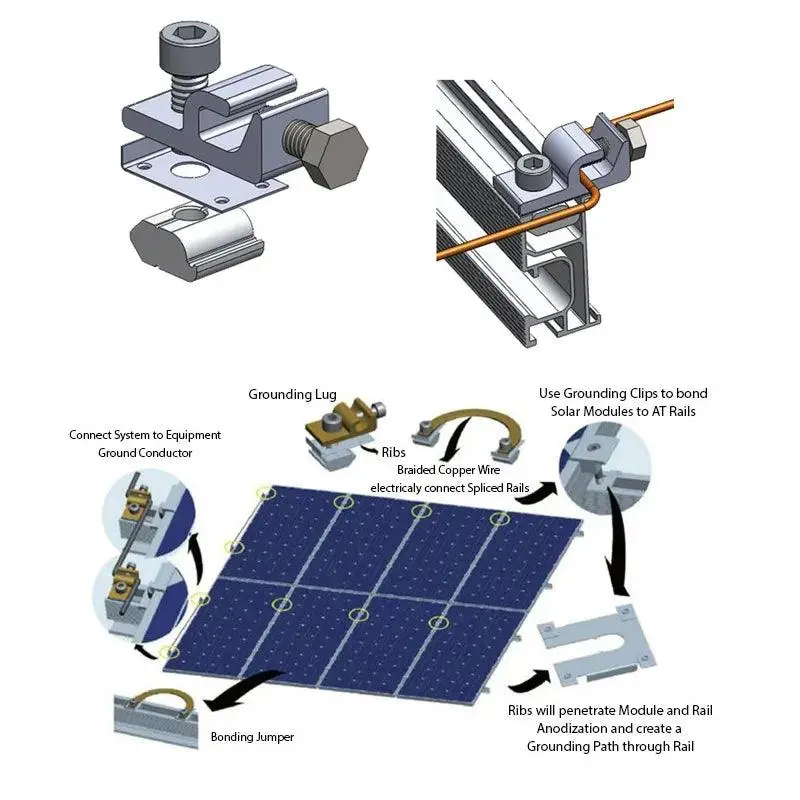

The grounding clip is designed to bond solar PV modules to mounting structures and create an electrical path to ground.

It eliminates the need for older, more costly grounding methods and greatly reduce the amount of labor and materials used in installations.

The innovative design removes the need to run ground wire to each individual module and eliminates the need for surface preparation on anodized aluminum components.

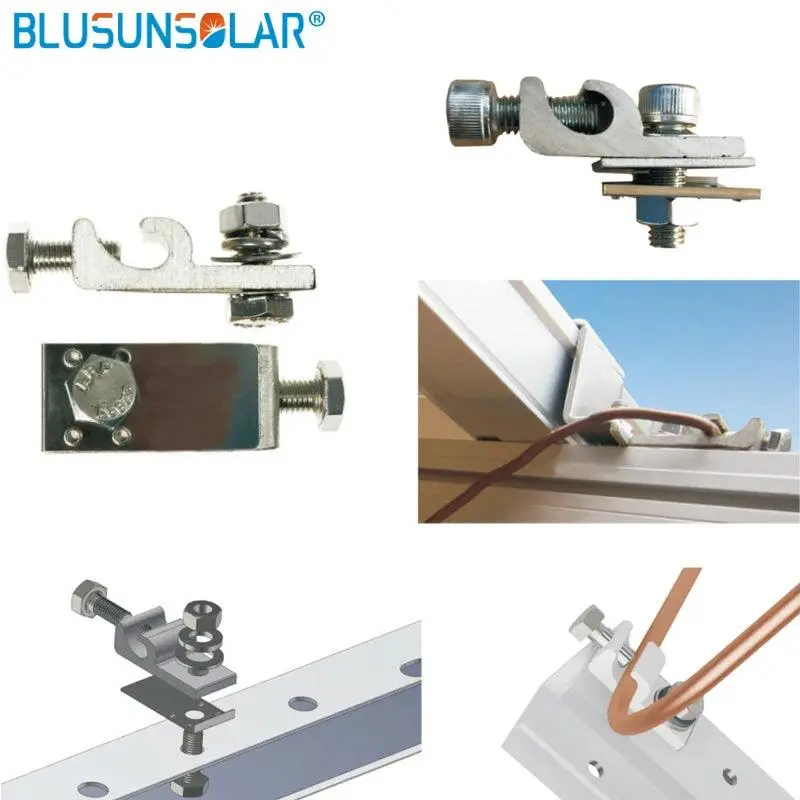

To install, the grounding clips are placed between PV modules and mounting rails at clamping points or at bolted connections.

When anti-seize is applied and the hardware is tightened down to the appropriate torque spec, the grounding clips’ specialized teeth embed into anodized aluminum, galvanized steel, or any electrically conductive metal to establish a gas tight electrical connection.
