Sale!
Rv1.25-4 Red Ring Insulated Wire Connector Electrical Crimp Terminal Rv1.25-4 Cable Wire Connector 100Pcs Rv1-4 Rv 1
Rv1.25-4 Red Ring Insulated Wire Connector Electrical Crimp Terminal Rv1.25-4 Cable Wire Connector 100Pcs Rv1-4 Rv 2

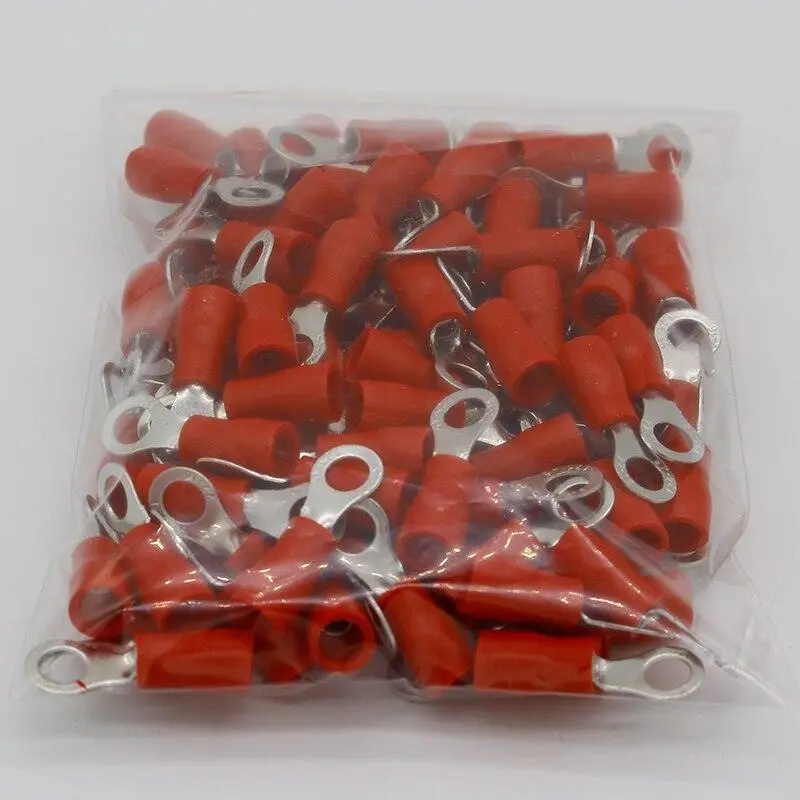

100-Pack RV1.25-4 Red Insulated Ring Terminals – 22–16 AWG (0.5–1.5 mm²) Crimp Connectors

Original price was: $4.28.Current price is: $2.85.

In stock

Quantity
Category: Brand:

Description

SPECIFICATIONS

RV1.25-4 Red Ring Insulated Wire Connector Electrical Crimp Terminal RV1.25-4 Cable Wire Connector 100PCS RV1-4 RV

Model Number: RV1.25-4

Certification: CE

Brand Name: ELECAPITAL

Conductor cross section:0.5-1.5 mm⊃2;(American Wire Gauge 22-16)Maximum current:Imax=19A
ITEMNO Size Color
US-madeboltnumber Bolthole diameter B L F H DΦ
d2 mm mm mm mm mm
RV1.25 – 3 #4 3.2mm 5.7 17.8 4.95 10.0 4.3 Red
RVS1.25 – 3.5 #6 3.7mm 5.7 17.8 4.95
RVM1.25 – 3.5 #6 3.7mm 6.6 20.1 6.3
RVL1.25 – 3.5 #6 3.7mm 8.0 21.5 7.0
RV1.25 – 4 #8 4.3mm 6.6 20.1 6.3
RVL1.25 – 4 #8 4.3mm 8.0 21.5 7.0
RV1.25 – 5 #10 5.3mm 8.0 21.5 7.0
RV1.25 – 6 1/4 6.5mm 11.6 27.5 11.1
RV1.25 – 8 5/16 8.4mm 11.6 27.5 11.1
RV1.25 – 10 3/8 10.5mm 13.6 31.6 13.9
